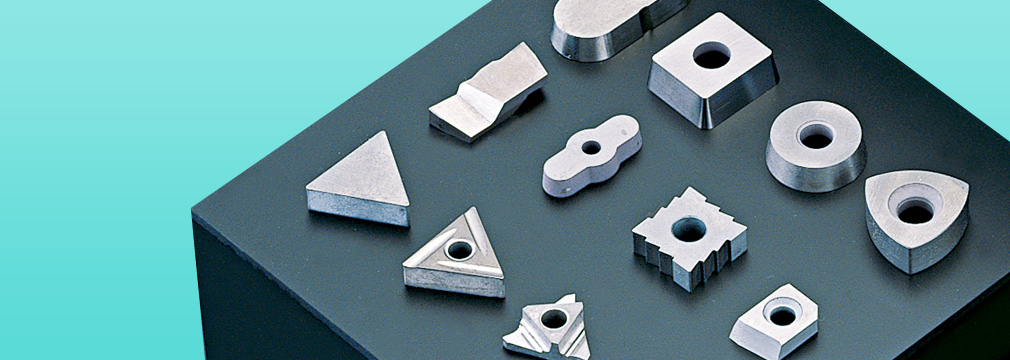

Materials for lnsert Tips

Features

Our P-class carbide and cermet tips provide excellent sharpness and durability even for intermittent machining.

We recommend our uniquely-developed cermet tips, CA and CB series, which are as strong as cemented carbide, as well as the P3F type, which is made of an innovative material developed from a mixture of P-class carbide and cermet.

Technical capabilities to fulfill customers’ requests

We have a press die production department, therefore we can quickly provide dies upon request at low prices.
We handle the mixing of powder materials, so we can develop materials according to your request.

Grade selection table of Materials for lnsert Tips

Cemented carbide alloy

Work material		Use Grouping	Grade	Hardness (HRA)	T.R.S. (GPa)	Density
Steel	P	P10	P2A	92.2	2.5	11.9
		P20	P3F	91.1	2.5	11.7
		P30	P3F	91.1	2.5	11.7
		P30	P3B	90.9	2.7	11.5
		P40	P4A	90.5	2.7	11.6
Stainless steel	M	M20	P2A	92.2	2.5	11.9
		M30	P3F	91.1	2.5	11.7
		M40	P4A	90.5	2.7	11.6
Non-ferrous Steel / Cast Iron	K	K01	KN05	92.6	2.6	14.8
		K10	KN10	91.6	2.7	14.7
		K20	G3	91.1	3.2	14.9
		K30	G4	90.0	3.3	14.6
	Z	Z01	ZN01	93.1	3.5	14.3
	Z	Z10	ZN15	92.0	3.0	14.2

Cermet

Work material		Use Grouping	Grade	Hardness (HRA)	T.R.S. (GPa)	Density
Steel	P	P01	CB12	92.1	2.2	6.7
		P10	CA11a	92.0	2.0	7.1
		P20	CA33	91.4	2.4	7.2
		P30	CA44	90.8	2.7	7.3
General Purpose	M	M20	CA33	91.4	2.4	7.2
General Purpose	M	M30	CA44	90.8	2.7	7.3
Cast Iron	K	K01	CB12	92.1	2.2	6.7
		K10	CA11a	92.0	2.0	7.1
		K20	CA33	91.4	2.4	7.2
		K30	CA44	90.8	2.7	7.3
