Cermet

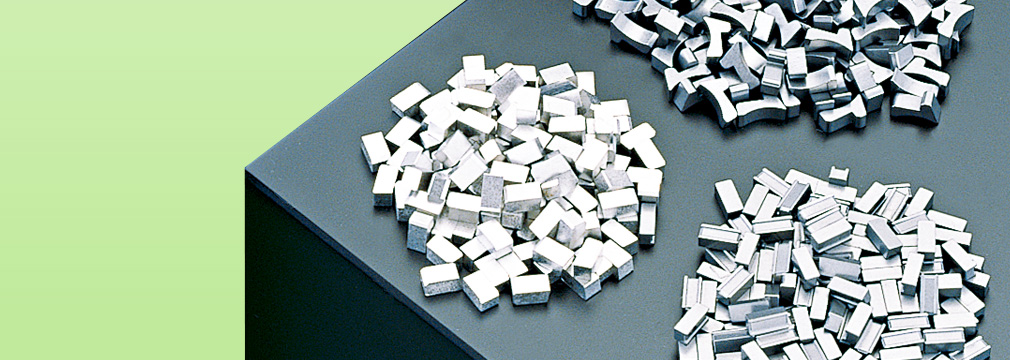

Our cermet tips, of which only the surface is rich in metal, offer outstanding brazing performance as well as sharpness.
Circular saws with cemented carbide or cermet tips, which are also known as “tipped saws,” are widely used in various industries such as iron and steel, automotive, construction, and agriculture and forestry. Our circular saw tips offer outstanding sharpness, wear resistance, and impact resistance. New grade tips especially developed for cutting iron and steel materials are also available. Our cermet tips for circular saws enjoy a particularly good reputation among customers because of their improved brazing performance and increased cutting life.
Our cermet tips, of which only the surface is rich in metal, offer outstanding brazing performance as well as sharpness.
A distinctive P class with toughness of cemented carbide and cutting quality of cermet.
| Work material | Use Grouping |
Grade | Hardness (HRA) |
T.R.S. (GPa) |
Density | |
|---|---|---|---|---|---|---|
| Steel | P | P01 | CB12 | 92.1 | 2.2 | 6.7 |
| P10 | CA11a | 92.0 | 2.0 | 7.1 | ||
| P20 | CA33 | 91.4 | 2.4 | 7.2 | ||
| P30 | CA44 | 90.8 | 2.7 | 7.3 | ||
| General Purpose | M | M20 | CA33 | 91.4 | 2.4 | 7.2 |
| M30 | CA44 | 90.8 | 2.7 | 7.3 | ||
| Cast Iron | K | K01 | CB12 | 92.1 | 2.2 | 6.7 |
| K10 | CA11a | 92.0 | 2.0 | 7.1 | ||
| K20 | CA33 | 91.4 | 2.4 | 7.2 | ||
| K30 | CA44 | 90.8 | 2.7 | 7.3 | ||
| Work material | Use Grouping |
Grade | Hardness (HRA) |
T.R.S. (GPa) |
Density | |
|---|---|---|---|---|---|---|
| Steel | P | P10 | P2A | 92.2 | 2.5 | 11.9 |
| P20 | P3F | 91.1 | 2.5 | 11.7 | ||
| P30 | P3F | 91.1 | 2.5 | 11.7 | ||
| P30 | P3B | 90.9 | 2.7 | 11.5 | ||
| P40 | P4A | 90.5 | 2.7 | 11.6 | ||
| Stainless steel | M | M20 | P2A | 92.2 | 2.5 | 11.9 |
| M30 | P3F | 91.1 | 2.5 | 11.7 | ||
| M40 | P4A | 90.5 | 2.7 | 11.6 | ||
